S1708 17.3*8mm Aluminum LED Profile
S1708 17.3*8mm Aluminum LED Profile
Category:
Surface Series
Key words:
Surface Series
-
- Commodity name: S1708 17.3*8mm Aluminum LED Profile

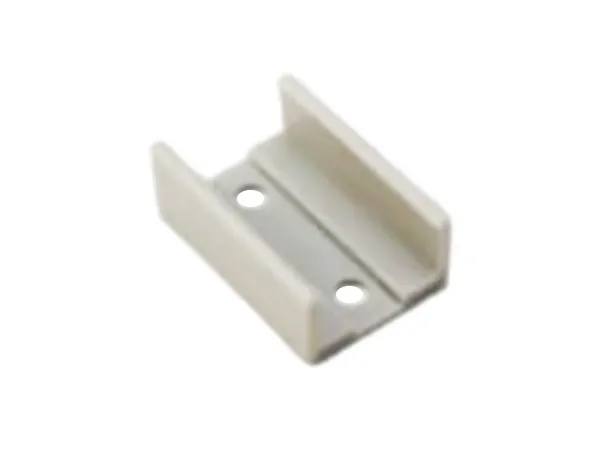

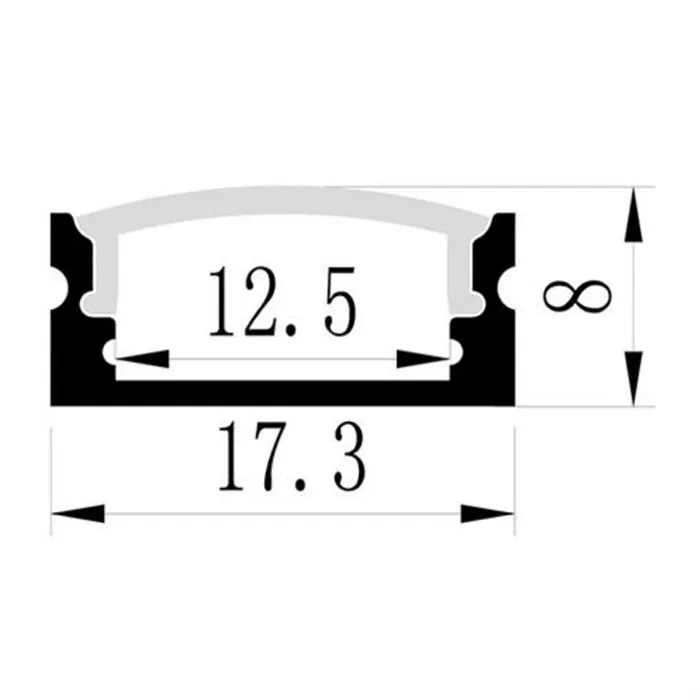

Specification Material 6063 Aluminum Alloy & PC Item No. S1708 Finish Anodized Silver, Powder Coated Black/White/Blue IP Rating IP20 Section Size W 17.3mm x H 8mm Match LED Strip Up to 12mm Width PC Diffuser Milky, Black , Clear Length 1m , 2m , 3m (customized length is available) Accessories Plastic End Caps , Plastic or Metal Clips OEM & ODM Available Accessories

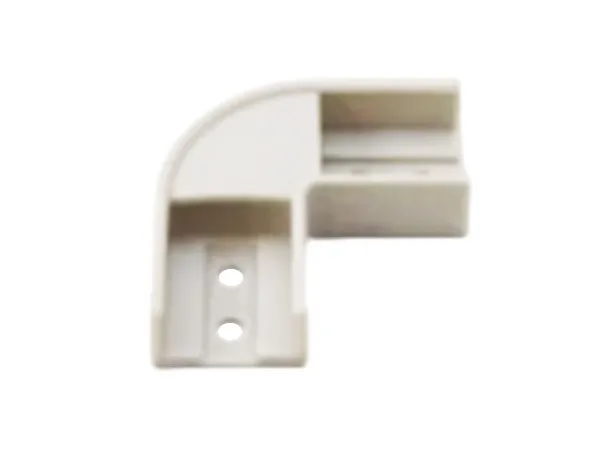

90° Connector
180° Connector
LED Flexible Strips

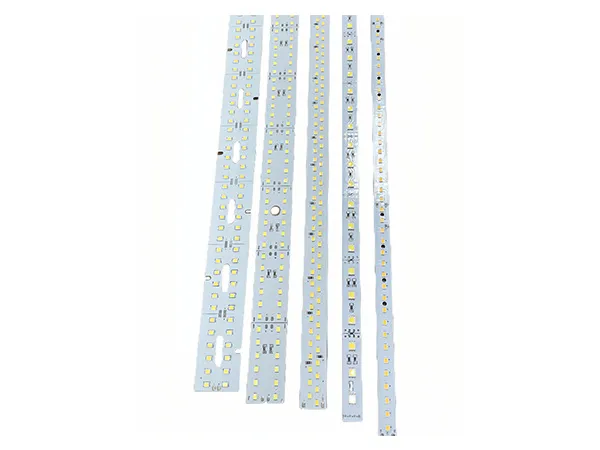

LED Rigid light bar
-
-
To install LED strip aluminum channel with a diffuser, please follow these steps:
Gather the necessary tools and materials: You will need the LED strip aluminum channel, LED strip lights, diffuser cover, mounting clips or brackets, screws, a screwdriver or drill, and any additional accessories specific to your installation.
Measure and cut the LED strip lights: Measure the desired length for your LED strip lights and cut them according to the marked measurement lines on the strip. Follow the manufacturer’s instructions and guidelines for cutting the LED strip lights.

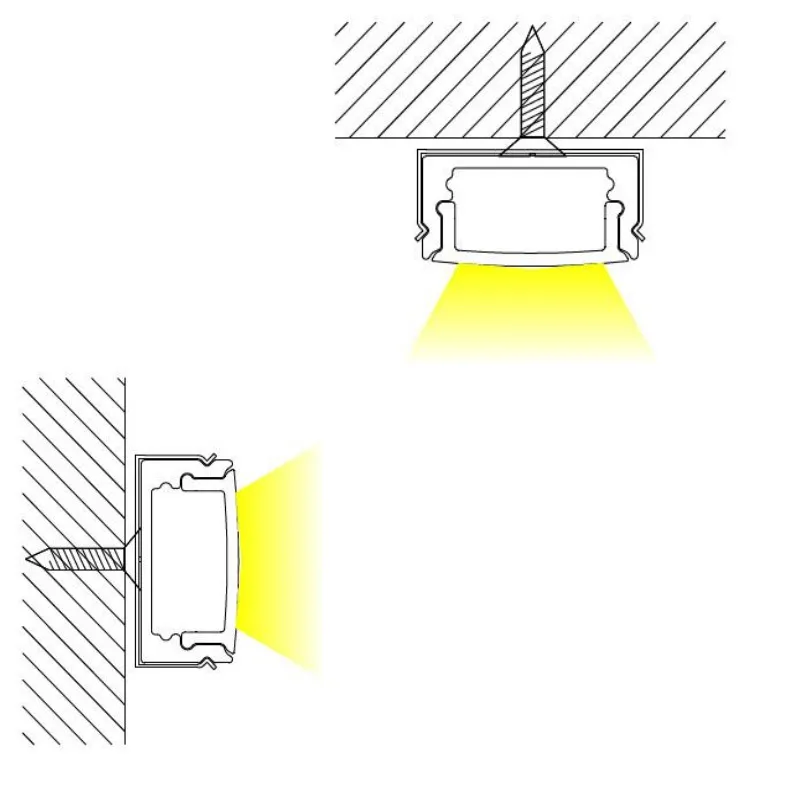

Mount the aluminum channel: Determine where you want to install the aluminum channel. Mark the mounting points on the surface, ensuring they are level and evenly spaced. Use screws and a screwdriver or drill to attach the mounting clips or brackets securely to the surface.
Insert the LED strip lights: Place the cut LED strip lights into the aluminum channel, ensuring the positive (+) and negative (-) terminals are aligned correctly with the connectors. Press the LED strip lights firmly into the channel to ensure a secure fit.
Install the diffuser cover: Place the diffuser cover over the LED strip lights, aligning it with the aluminum channel. Depending on the design of the diffuser, it may snap into place or require additional clips or brackets for secure attachment. Follow the manufacturer’s instructions for properly installing the diffuser cover.
Wire the LED strip lights: Connect the positive (+) and negative (-) terminals of the LED strip lights to an appropriate power source. Consult the manufacturer’s instructions for proper wiring and connection methods.
Secure and test the installation: Double-check that all components, including the aluminum channel, diffuser cover, and LED strip lights, are securely attached. Make any necessary adjustments or fixes if needed. Turn on the power to test the LED strip lights and ensure they are functioning correctly.
Please note that the specific installation process may vary depending on the manufacturer and model of the LED strip aluminum channel and diffuser. Always refer to the manufacturer’s instructions and guidelines for the most accurate and up-to-date installation procedures. If you are unsure or need assistance, it is recommended to consult a professional electrician for installation support.
-
- Description
- Lighting
- Installation
- Application
-
Specification Material 6063 Aluminum Alloy & PC Item No. S1708 Finish Anodized Silver, Powder Coated Black/White/Blue IP Rating IP20 Section Size W 17.3mm x H 8mm Match LED Strip Up to 12mm Width PC Diffuser Milky, Black , Clear Length 1m , 2m , 3m (customized length is available) Accessories Plastic End Caps , Plastic or Metal Clips OEM & ODM Available Accessories
90° Connector
180° Connector
LED Flexible Strips
LED Rigid light bar
-
-
To install LED strip aluminum channel with a diffuser, please follow these steps:
Gather the necessary tools and materials: You will need the LED strip aluminum channel, LED strip lights, diffuser cover, mounting clips or brackets, screws, a screwdriver or drill, and any additional accessories specific to your installation.
Measure and cut the LED strip lights: Measure the desired length for your LED strip lights and cut them according to the marked measurement lines on the strip. Follow the manufacturer’s instructions and guidelines for cutting the LED strip lights.
Mount the aluminum channel: Determine where you want to install the aluminum channel. Mark the mounting points on the surface, ensuring they are level and evenly spaced. Use screws and a screwdriver or drill to attach the mounting clips or brackets securely to the surface.
Insert the LED strip lights: Place the cut LED strip lights into the aluminum channel, ensuring the positive (+) and negative (-) terminals are aligned correctly with the connectors. Press the LED strip lights firmly into the channel to ensure a secure fit.
Install the diffuser cover: Place the diffuser cover over the LED strip lights, aligning it with the aluminum channel. Depending on the design of the diffuser, it may snap into place or require additional clips or brackets for secure attachment. Follow the manufacturer’s instructions for properly installing the diffuser cover.
Wire the LED strip lights: Connect the positive (+) and negative (-) terminals of the LED strip lights to an appropriate power source. Consult the manufacturer’s instructions for proper wiring and connection methods.
Secure and test the installation: Double-check that all components, including the aluminum channel, diffuser cover, and LED strip lights, are securely attached. Make any necessary adjustments or fixes if needed. Turn on the power to test the LED strip lights and ensure they are functioning correctly.
Please note that the specific installation process may vary depending on the manufacturer and model of the LED strip aluminum channel and diffuser. Always refer to the manufacturer’s instructions and guidelines for the most accurate and up-to-date installation procedures. If you are unsure or need assistance, it is recommended to consult a professional electrician for installation support.
-
